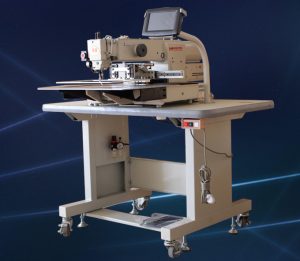

Lowest Cost Automatic Programmable Pattern
Sewing Machine for Leather, Webbing, and Clothing
1. The lowest cost automatic programmable pattern sewing machine available on the market today;
2. This inexpensive automatic pattern sewing machine is not the same as other cheap programmable sewing machines, but use the best Chinese electronic controlling system.
3. The large sewing area of the HighTex MLK200-3020 allows it to be a versatile automatic pattern industrial sewing machine for use in many different sections of the clothing and textile industry.
4. The adoption of the universal serial bus (USB) makes programming, updating, and storage easier. Widely available inexpensive Flash Memory sticks can be used.
5. Sewing patterns can be set with-in the sewing area using the included handheld programming unit with clear LCD screen and easy to follow menus.
6. The Direct-Drive system of this low-cost programmable pattern sewing machine improves sewing acceleration and save about 40% electric when compared with conventional machines.
7. All units are thoroughly tested before delivery, ready to operate out of the box, also very easy to use and maintain.
Specifications: |
|||
Max. Sewing Speed: |
2000 rpm |
Hook Type: |
2 times large rotary hook |
Sewing Area: |
300 x200mm |
||
Needle System: |
DPX17 #18 |
Max. Thread size |
#10 (=T-270, V277, 840dx3) |
Optimal sewing thickness: |
2-5mm of thick leather, webbing and clothing |
Bobbin size: |
Outside Dia. 25mm, Height 11mm |
Stitch Length: |
0.1~12.7mm |
Bobbin: |
Aluminum bobbin |
Work Holder Lift : |
32mm |
NeedleBar Stroke: |
41.2mm |
Presser Foot Lift: |
10mm |
Presser foot stroke: |
4 mm to 10 mm |
Max. QTY of Patterns: |
10000 patterns |
Needle cooler: |
Cold air |
Pattern Storage : |
Internal & USB |
Pattern Input : |
Digital Keypad |
Max. Number of Stitches: |
8000 per pattern |
Drive Motor: |
Limi-Servo (450 Watts) |
Air pressure: |
0.6 MPa |
Power: |
200-240 Volt 1 or 3 Phase |
Thread trimmer system: |
Horizontal engagement with fixed knife and movable knife |
||
Package (plywood case): |
1200x1230x 1300 MM, G.W: 190KGS |
User Guide
Not yet available
