9518

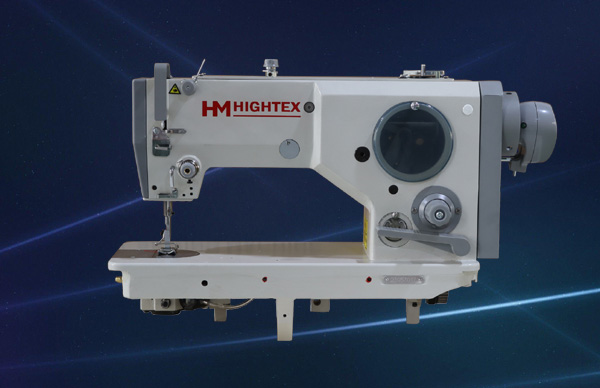

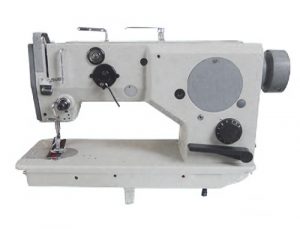

High Speed Cam Controlled Machine for Decorative Stitiching

Features: It employs a parallel vertical needle bar motion for more substantial striking power and can easily sew sturdy webbing reinforcement and heavy-duty corner patches. Its modern design features a zigzag width of up to 10 mm and a stitch length of up to 5 mm. This zigzag sewing machine is capable of powering its needle through 7 mm of Dacron, Kevlar, Webbing, Canvas and leather. The hook containing the lower bobbin is twice the average size, resulting in fewer bobbin changes and in combination with the vertical take-up lever system, it is of particular use when using thicker than regular sewing threads; 9518 (similar to Adler 525) is recognized as the best spinnakers sewing machine in modern sail making industry, standard supplied with four cams for straight stitch, 1-step (2-points), 2-step (3-points), 3-step (4-points) zigzag. Standard provided with best price premium brushless servo motors with speed control and needle positioning.

Specifications

Max. Sewing Speed:

2000 rpm

Hook Type:

Large vertical rotary hook

Presser Foot Lift:

13mm

Needle bar stroke:

36 mm

Needle System:

134-35 (#90-#150)

Max. Thread size

20/3

Stitch Length:

0-5mm

Bobbin size:

Outside Dia. 26mm, Height 11.2mm

Max. zigzag width

10mm

Take up stroke:

86 mm

Working space:

260mm (length) x120mm( High)

Recommended motor:

Minimum 0.55 kW

Packing size:

650X320X620MM, 50KGS

Tariff code (HS code):

8452290000

In Stock

Delivery 4-5 days

More Delivery Information

distributer

The UK's Only Distributer

experience

60 Years Industry Experience

support

Servicing and Support Available

£2,395.00 Inc VAT

Only 1 left in stock

trade-icon
Looking to make multiple purchases?

User Guide

Not yet available
