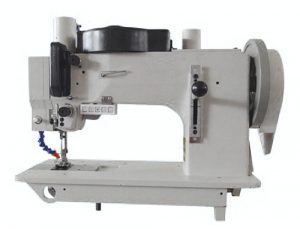

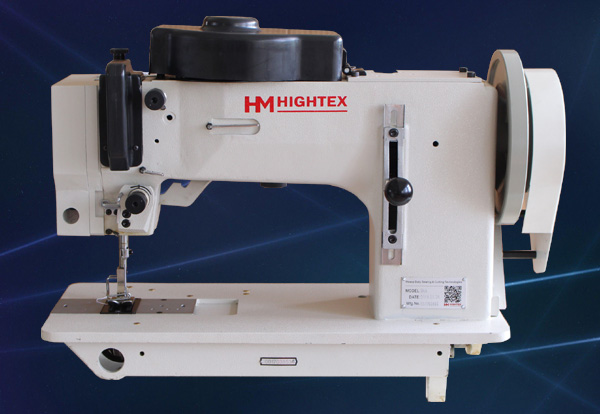

Heavy Duty Three Step Zig-Zag

Your advantages:

1. It employs a parallel vertical needle bar motion for extremely strong needle penetration force and can easily sew sturdy webbing reinforcement and extra heavy sail corner patches. This extra heavy duty zigzag sewing machine is capable of powering its needle through 20mm of Dacron, Kevlar, Webbing, Canvas and leather.

2. Easy to change cam for straight stitch, 1-step (2-points), 2-step (3-points), 3-step (4-points) zigzag, cover all demands of modern sail-making industry.

3. The large shuttle hook and bobbin capacity reduces the number of bobbin changes and offers high efficiency in sewing sails, tents and tarpaulins, using extra thick thread up to size V277, as well as thick decorative thread Tex 400 or 1300dx3 or 1.2mm braided thread.

4. A large Zigzag width of up to 12mm to give nice decorative or functional stitching on a wide range of applications.

5. The basic mechanics (Shuttle hook, adjustments and times) are the same with Durkopp Adler 366 heavy-duty zigzag; therefore, it is easier for the manufacturers who already worked with Adler 366 type zig-zag sails sewing machines.

6. This triple zigzag sewing machine can also be set to sew straight stitches;

7. Pneumatic foot lift, pneumatic reverse stitch, needle cooler, and zigzag binding device are available.

Typical Applications:

1. Sails making and repairing: 1-step (2-points), 2-step (3-points), 3-step (4-points) zigzag for heavy-duty reinforced webbing straps to the edges and patching thick corners.

2. Parachute manufacturing: specialize in sewing heavier thread used to manufacture and repair parachute harnesses. Adjusting the stitch regulator allows the rigger to do an acceptable job sewing bar tacks.

3. Furniture upholstering: thick thread decorative seams on upholstery leather and soft furnishing fabrics, for example, leather sofas, and bags.


Max. Sewing Speed:

800 rpm

Hook Type:

KSP-204 Large Barrel shuttle hook

Presser Foot Lift:

20mm (by pneumatic foot lift)

Needle bar stroke:

56 mm

Needle System:

794 # 160 – 250

Max. Thread size

V277,Tex 400 or 1300dx3

Stitch Length:


Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Max. zigzag width:

12 mm

Take up stroke:

96 mm

Working space:

320mm (length) x185mm( High)

Recommended motor:

Minimum 0.75 kW

Packing size:

860x480x900MM, 90KGS

Tariff code (HS code):



In Stock

Delivery 4-5 days

More Delivery Information


The UK's Only Distributer


60 Years Industry Experience


Servicing and Support Available

£6,478.80 Inc VAT

Only 1 left in stock
